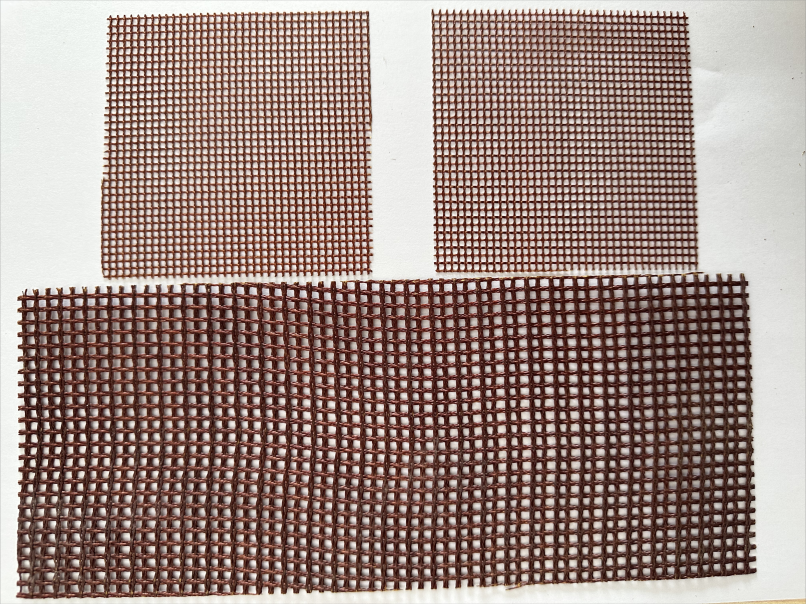

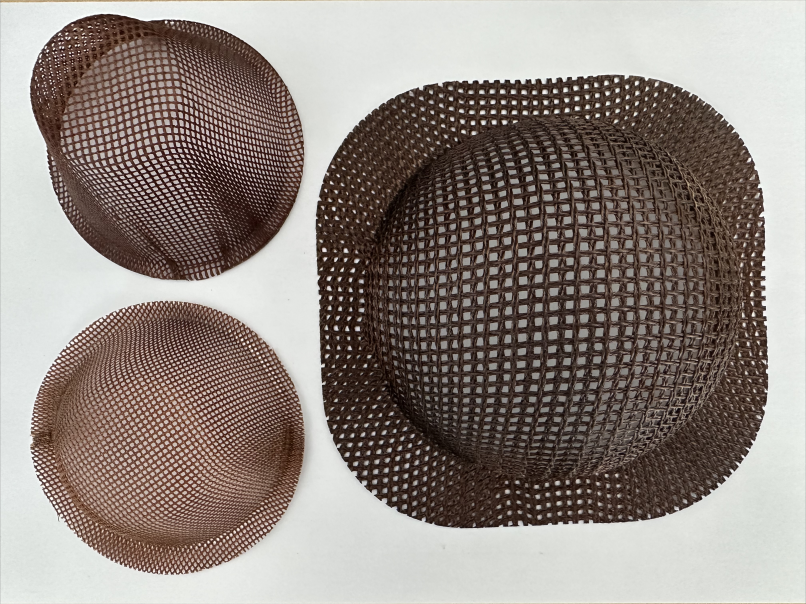

Fiberglass mesh filter are used for filtration of iron,aluminum,steel and other casting metal liquid.
This type of product is suitable for resin sand,sodium silicate sand,precoated sand and some other formative technology.It is used for casting high manganese steel,alloy steel.stainless steel,carton steel ,high chromium cast iron,ductile iron,grey iron casting,etc.
1. The appearance requirement and dimension allowable deviation for the ceramic tube:
Item | Index error(mm） | ||
Inner diameter | ＜50 | Dimensional tolerance | ±1.5 |
50-100 | ±2 | ||
＞100 | ±3 | ||
Length | ＜300 | ±2 | |
＞300 | ±3 | ||
Thickness | 5-10 | ±1 | |
11-20 | ±2 | ||
＞20 | ±3 | ||
Inner diameter＜φ50 | Ovality deviation | ±1 | |
Inner diameterφ50-φ100 | ±2 | ||
Inner diameter＞φ100 | ±3 | ||
Non-critical area diameter | Concavity | ＜5 | |
Length＜300 | Bend | ＜3 | |
Length300-500 | ＜4 | ||

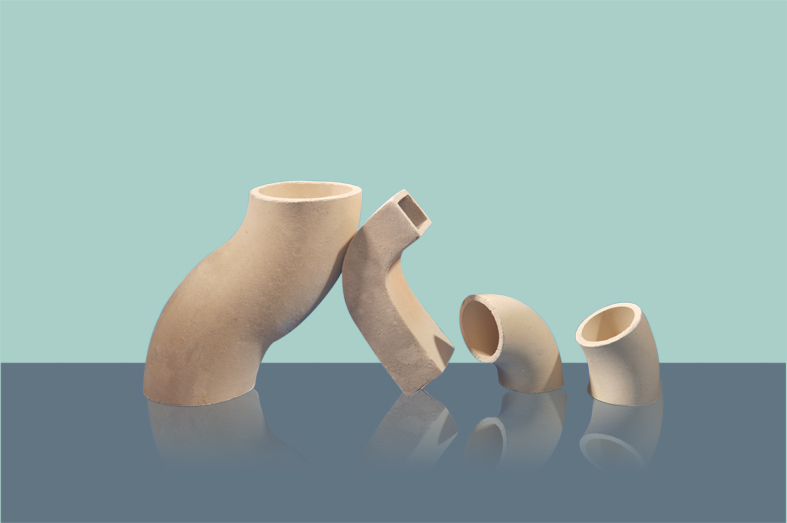

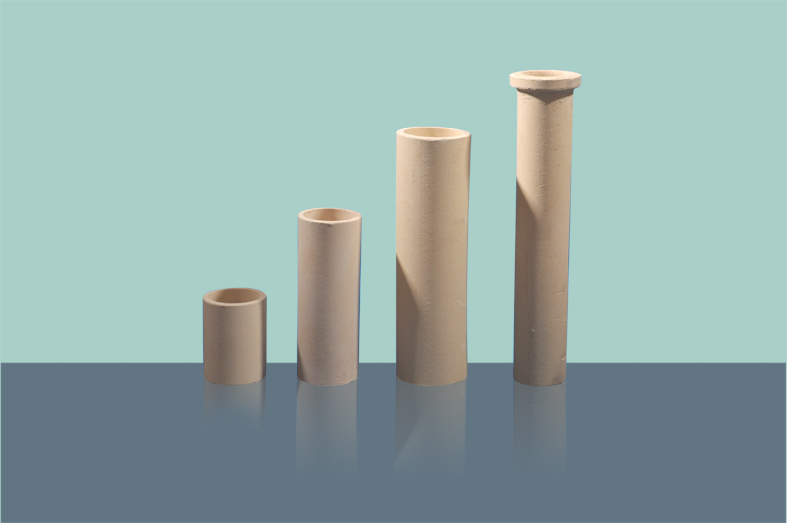

2. The physical and chemical index for the ceramic sprue tube
Item | Al2O3 Content % | Refractoriness ℃ | 0.2Mpa start point temper of refractoriness under load ℃ | Reheating linear change (1400℃.2h) | Apparent porosity % | Cold crushing strength.Mpa |
Standard | ≥45 | ＞1700 | ≥1280 | +0.2 -1.5 | ≤28 | ≥30 |

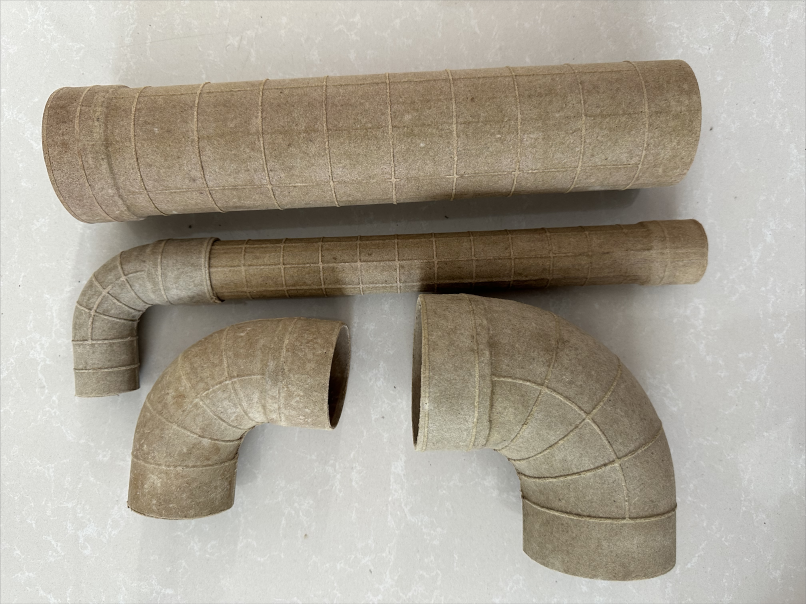

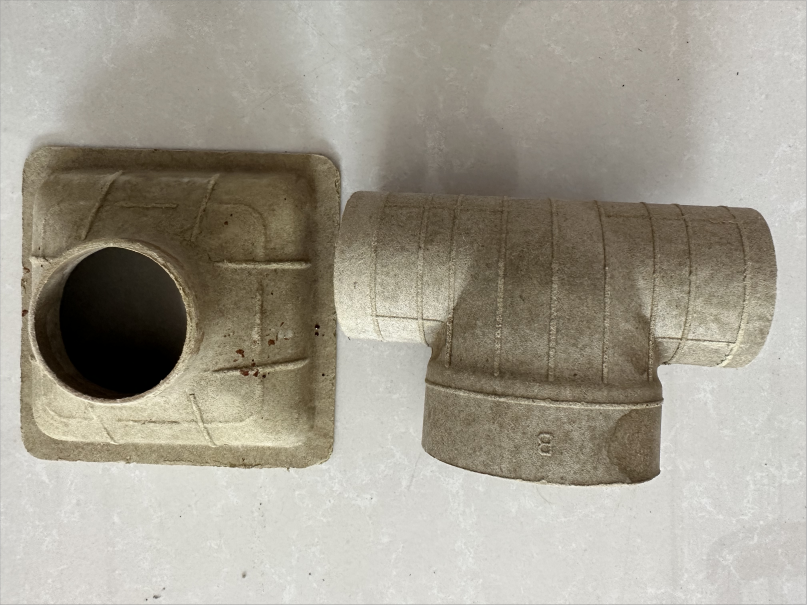

Paper tube for casting is Eco-friendly,cost-effective and an ideal replacement of ceramic tube.It can improve casting quality,reduce scrap,improve the quality of reclaimed sand,reduce work intensity.

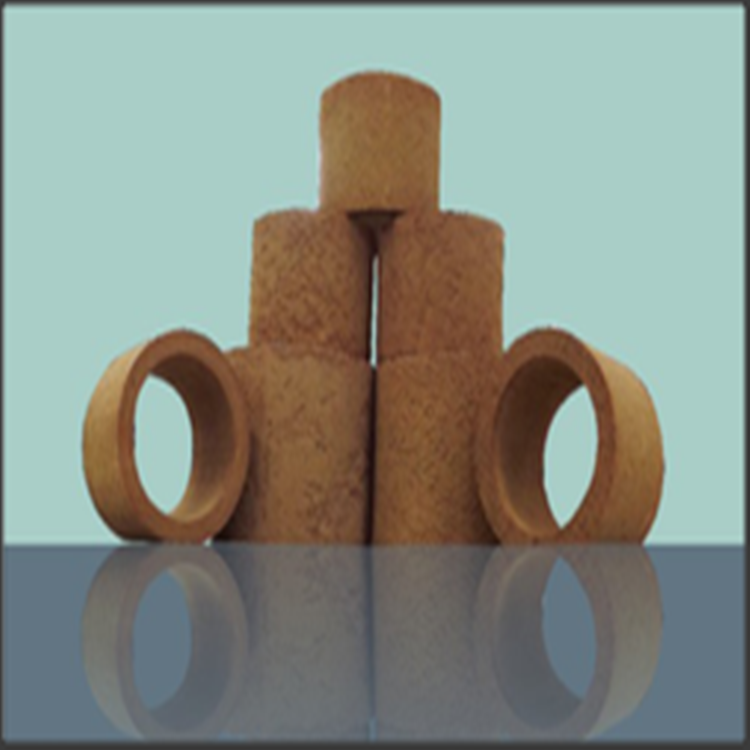

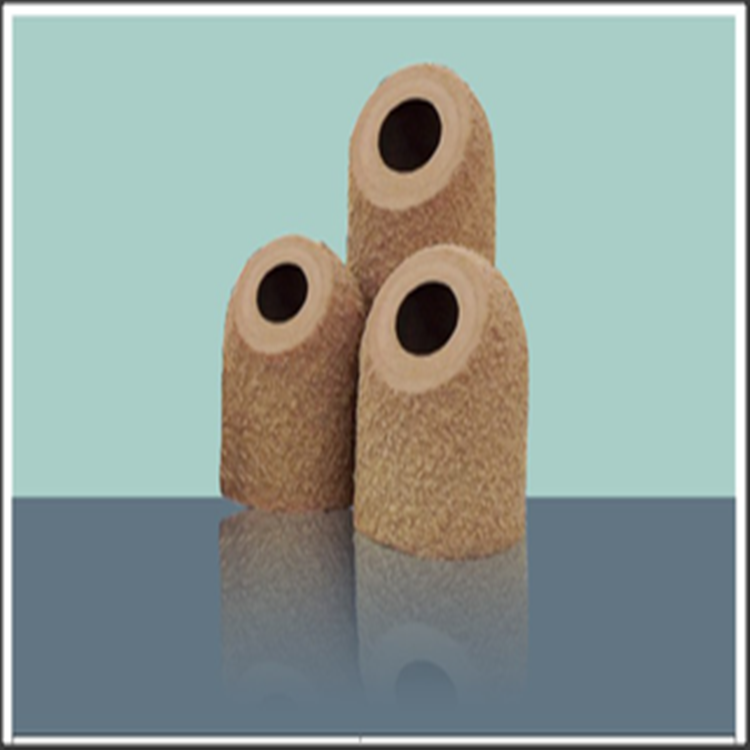

The high efficient exothermic insulation riser has low density,high strength and good toughness, which suit for all kinds of black and non-ferrous casting.
